Overview for Metamorphosis and Sub-Units
|
|
|
|
|
|

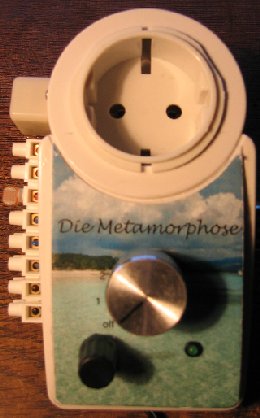

Tiny-Unit
can be used for cleaning water in the Solar-Cooker and using the Solar-Cooker at night
Pump max. 12V, 6A; (external 12V Power-Supply required)
Immersion-Heater max. 220V / 2000 Watt (not included)
One channel Irrigation-Controller with Humid-Sensors and Auto-adjustment of Irrigation-Time and Set-Point, Manual Mode, no
external Power-Supply required;
Pump max. 220V/16A, 3000VA;
Alarm-System: Three channels (analog and digital) with external Horn and Relay Output. Can be used for High-Voltage
Protector (not included). Relay max. 220V/16A, 2000VA; no external Power-Supply required
Reducing the electrical demand for Air-conditions and Water-Heater-Systems drastically by
switching on only if somebody is present.
Relay max. 220V/16A, 3000VA; Any moving-Detector can be connected (not included)
|
|
|
|
|
Including 2 KB Atmel CPU, 3 analog Inputs, 1 Relays Output, 1 MOSFET Output, Buzzer, integrated Power-Converter 220V/12V, 8 Step Program-Switch, LED, Regulator for Setpoint. Software for all
applications inclusive free Update and new Software via the Internet.
Extensions for using the Unit as a Solar-Cooker Controller:
Heat-Exchanger and Piping (for Solar Water-Pasteurization)
12V-Pump
Irrigation-System: Humid-Sensors, LDR and NTC
Min-Alarm-System: Loud Horn for Alarm-System
High-Voltage Protector for Alarm-System
Moving-Detector for Alarm-System and Aircon-System
Programming-Adapter
|
|
|
|
|
|
Compact-Unit
can be used for one channel Irrigation-Controller with Humid-Sensors and Auto-adjustment of Irrigation-Time and Set-Point, Manual Mode. No external
Power-Supply required; Optional as a Solar Water-Pump. Pump max. 380V/16A, 3000VA;
Solar-Charger 15 A with deep-discharge Protection. NiCd/NimH-Charger integrated for AA and AAA-Types
of Batteries. High-current Pulses-Generator to extend the life-time of the Battery.
|
|
|
|
|
Remote-Switch and Car-Alarm-System: Using a Mobile-Phone you can switch on anything from Remote (for example the Heater in a car). If the Unit is installed in a car and the car is stolen the motor will be
switched off and a Alarm is initiated (by Mobile-Phone and / or Horn)
Including 4 KB Atmel CPU, 4 analog Inputs, 1 Relays Output, 1 MOSFET Output, Buzzer, 8 Step Program-Switch,
Charging-Unit for Lead-Acid Batteries, LED, Regulator, 5V Output Voltage, Software for all applications inclusive free Update and new Software via the Internet.
Extensions:
Two additional Relays
High-Current discharging Pulses
Nicd/NimH-Charging Unit
Prepared Mobile-phone Data-cable (for Siemens Mobile-Phones)
integrated Charging-Unit for Mobile-Phones
Programming-Adapter and Data-Cable
|
|
|
|
|
|

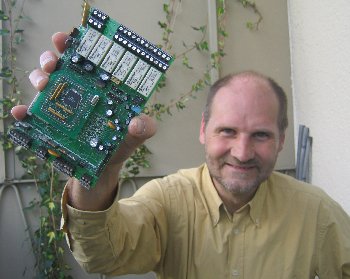

Metamorphosis
Can be used for a four channel Irrigation-Controller with Humid-Sensors. Optional as a Solar Water-Pump. Wide range of additional
functions inclusive fully Remote-Controlling by Mobile-Phone.
Four Pumps with max. 220V/16A, 3000VA or one Pump with 380V/16A, 4000VA
Solar-Charger up to 40 A with deep-discharge
Protection. NiCd/NimH-Charger integrated for AA and AAA-Types of Batteries. High-current Pulses-Generator to extend the life-time of the Battery. Data-Logging, fully Remote-Controlling by
Mobile-Phone. Integrated Alarm-System with Telephone-notification.
|
|
|
|
|
Alarm-System: Up to 15 channels (analog and digital) with external Horn and Relay Output. Each channel can be programmed as 24h-Alarm, delay-time, no delay, silent Alarm, loud Alarm, 1-99 different Zones.
Prepared for Radio-Sensors. Can be used for a High-Voltage Protector as well (not included). SMS and Telephone-Alarming. Up to 6 programmable Relays with max. 220V/16A, 2000VA; Telephone-notification,
fully Remote-Controlling by Telephone or Mobile-Phone.
Starting-Unit for a Motor-Generator-Set: Start Generator by Battery Status low, Mains failure, Timer or Manual. Three Start-Trials and
Error-Messages. Three independent Running-Time counters. Additional Alarm-Inputs. Fully Remote-Controlling by Mobile-Phone inclusive Alarming. Can be combined with the Solar-Charger
Solar-Cooker
Controller: Wide range of additional functions for a Solar-Cooker: Pasteurization of water (producing potable water), using the Solar-Cooker also at night with a Immersion-Heater, Programmable
Cooking-Times, Alarm-System for a Solar-Cooker etc.
Home-Brewery: Flexible process automation System with up to 50 independent steps. Every step can include temperature / Time Values and
additional measuring values (up to eight values). All Set-Points can be changed during production, it can be switched to any step at any time. With this Software producing Beer at home is very easy.
Including 128 KB Atmel M128 CPU, LCD and Keyboard, 5 Analog Inputs, 4 Digital Potential-free Inputs, 2 Relay Outputs (max. 400V/16A), 1 MOSFET Outpu(max. 40V/6A), Telephone
Output, 12 Step Program-Switch,3-12V/2A Regulated Output-Voltage (is used for Simulation as well), Buzzer, Programming-Adapter and Data-Cable, Remote-Control and Programming by a PC. Software for all
applications inclusive free Update and new Software via the Internet.
Extensions:
For using the Unit as a Solar-Cooker Controller:
Heat-Exchanger and Piping (for Solar Water-Pasteurization)
12V-Pump
For the Alarm-system:
Loud Horn for Alarm-System
integrated Noise-Detector for Alarm-System
integrated NF-Amplifier for to connect a Speaker to the Alarm-System
Prepared Mobile-phone Data-cable (for Siemens Mobile-Phones)
High-Voltage Protector for Alarm-System
Integrated Moving-Detector
For the Irrigation-System:
Humid-Sensors, LDR and NTC for Irrigation-System
Four additional Relays
Four additional Potential-free Inputs
|
|
|
|
|
|
Inside Metamorphosis:
up: Relais and Output-Terminals, Automatic-Fuse
middle: Plug-in CPU M128 and Patch-Field for User
down: Voltage-Regulators, POWER-MOSFET, Digital/Analog Input,
Optocoupler, Input-Terminals
|
|
|
|
|
Specifications metamorphosis (maximum configuration)
|
|
|
|
|
|
Power-Supply
|
10-30 V
|
|
System-Voltage (automatic switch over)
|
12 V / 24 V
|
|
max. Number of relay (12V, 24V, 220V) for pumps etc
|
6
|
|
Switching power relay outputs max.
|
10A
|
|
Switching voltage, relay outputs
|
12V / 24V / 110V / 220V AC / DC
|
|
Automatic short circuit-protection of the Relay Output
|
12V/24V yes, 220V no (must be applied externally)
|
|
Latching relays (only need to save energy)
|
possible
|
|
Connection pulse valves (need a Pulse to switch)
|
possible
|
|
max. No. Transistor outputs (12V/24V)
|
5
|
|
Automatic short circuit-protection of the Transistor Outputs
|
yes
|
|
free selection of the input-Typs
|
Voltage; Current, NTC, PTC, Pt1000, 0-20mA, 4-20mA
|
|
max. Number of analog inputs
|
15
|
|
max. Number of digital inputs
|
8 Isolated
|
|
Max. number digital Potential-free Inputs
|
8
|
|
Counter-Input
|
2
|
|
Power-consumtion of the Unit
|
15 mA
|
|
max.ambient temperature
|
-25 °C... +50 °C
|
|
LCD-Display
|
yes, 2*16 signs
|
|
small LCD-Display
|
74 x 35 mm
|
|
big LCD-Display (fits only in the big Case)
|
99 x 24 mm
|
|
Keypad
|
yes, 12 keys
|
|
Program-selector
|
yes, 12 positions
|
|
Max. number serial interfaces
|
2
|
|
Alarm-Beeper
|
Yes
|
|
ELV wireless sensors
|
Wind, Temperature, Humidity, Rain
|
|
max. Number of stored measurement values
|
4000 16bit
|
|
Optional data logging on MMC / SD-card
|
yes, with it 16 million measured values
|
|
Interface to the free excellent Logging-Software Logview
|
yes
|
|
Remote control by a Windows PC (using our freeware Dialer)
|
yes, all functions
|
|
Remote control by modem, Mobilephon, GSM-Modem
|
yes
|
|
with that SMS-handling (Alarm and switches Output)
|
yes
|
|
optional connection of a cable-telephone
|
yes, 2 phone numbers
|
|
optional network / Internet-connection
|
yes
|
|
Output auxiliary-Voltage 5V, 0,5A
|
yes
|
|
optional adjustable Voltage-Output with 3V. 12V/24V, 1A
|
yes
|
|
Download of new software by the PC
|
yes
|
|
short high-current-impulses for the reducing of Sulphating
|
yes
|
|
max. cable connection (fine - / single-wire) Solar
|
16 mm²
|
|
max. cable connection (fine - / single-wire) Relay
|
2.5 mm²
|
|
Protection-Class
|
IP 32
|
|
Dimension L x B x H in the standard-casing
|
200 x 190 x 78 mm
|
|
Dimension L x B x H big Case
|
290 x 260 x 115 mm
|
|
Operation-languages (at present)
|
German / English
|
|
|
|
|
Electrical Details
|
|
|
The Metamorphosis consists (Max.Values) of the following Hardware (Hardware V11):
- The M256 from Atmel is the absolute Killer-Processor; RISC-Architecture for fast executing of the Program,
256 Kbyte Flash, 4 Kbyte EEPROM, 8 Kbyte RAM
- 8 Potential-free Inputs, 6 Relays-Outputs (up to 16A), 1 Power-MOSFET-Output onboard
(all Relays-Output could be Power-MOSFET or Triac as well)
- two times Double-Relays for left/right Positioning etc.
- 15 Analog Inputs with 10bit Resolution, could be used as Digital-Inputs as well. Including four Analog Inputs with additional variable Amplifying
- Additionally 12 free Ports. Could be used as Input / Output
- Three fast Counter for multiple use
- Up to 8 PWM-Outputs
- I2C-Protocoll. With that easy extension of Input / Output / Analog (up to 128 Digital Input / Output / Analog)
- RC5/RC6 IR-Remote-protocol
- 2 serial Ports (USART)
- integrated Beeper
- You can save up to 7400 Values on chip and upload it later on with the PC (cable and Software is included)
- Fully Remote Control of all Function (including switching Outputs) via Modem, GSM-Handy, or direct Cable
- Send SMS for Alarms, Receive SMS for Switching Outputs
- Power-Supply 10-30 V from solar-cells or lead-batteries or NiCd-Batteries or Transformer
- 2x16 character LCD-Display, keyboard with 12 keys
- Program-selector with 12 positions
- NiCd, NimH-Battery Loading-unit
- Additional lead-battery load-controller (max. 2A)
- Different voltage sources (5V/12V, 2A) for small-appliances like Walkman, CD-Player etc
- Telephone calling device (calling up to three numbers)
- Integrated noise-detection-device
- Room-Supervision with a built-in microphone
- NF-Amplifier for a Loud-Speaker
- PC-Cable for loading Software, Remote Control and your own programs
- The Processor is programmed with the easy Programming Language ”Basic”
- Free Design of the Front. Send us your picture and we use it. Or select one of our Picture-Library
|
|
