The differential white cell blood counter with integrated Alarm-System for supervising the laboratory with Battery-Backup

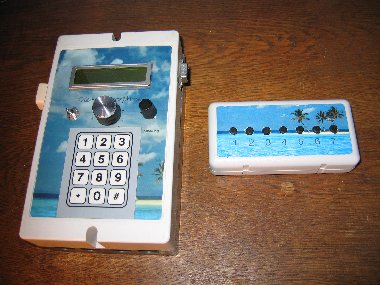

Blood Cell Counter
In the laboratory, the percentage of the Leukocytes in the blood have often to be counted. This can be done with the Metamorphosis very simply and comfortably. But the laboratory can also be supervised and there is a alarm if somebody unauthorized is going into the rooms. This alarm can also activate a Telephone-call

Features:
Seven fast counter with display of the subtotal

Display of the names of the components and the according percentage values

Very simple operation

Up to 570 measurements are stored on the Chip. With the cable you can get the data be loaded on a PC

This protocol can be printed out directly or can be processed further on in Word or Excel etc.

The default final value of the counter is 100. But any other value is possible and can be entered.

Additionally one Output is programmable as a timer (maximum 220V, 10A)

Furthermore there is a four channel alarm system integrated

A Moving.- and Noise-Detector is already integrated. Further external alarm-sensors (three loops with several alarm-sensors ) can be connected.

After a alarm is coming there can be a telephone-notification as well. Then you can hear what is happening in the laboratory and you can speak to the thief. Optional a  lamp can be switched on delayed

Connection of NiCd / NimH-Accumulators or of lead-acid accumulators. A independent loading-device is available for both accumulator-types (Option)

The new 1,5V accumulators (AccuCell etc) can also be loaded with the Metamorphosis (Option)

When there is a power-failure, it switches automatic to the accumulators, the other time they are loaded. So it works also in areas with weak power-supply

Display of the battery-voltage

Adjustable voltage output 3-12V, 2A  (Option)

You could even make your own Program-Modifications. Additional Software can be loaded into the Metamorphosis and is available in the Internet. (Software for irrigation, powerful alarm-system, solar-regulator etc)

Different language-versions are available and can be switched over

Remark: The above mentioned features are the Maximal Configuration. If you order please ask for he features you really need

more Information and Downloads

download

Download of the Software

Download of the Bootloader for to load the Software

Click here to download the Operation-Manual

as pdf:

Download of the Terminal-List

PDF_klein

Overview and Prices

Download of the Software for to Remote-Control the Metamorphosis and Upload of Measured Data (just unpack in any Folder and start “Dialer.exe”)
