Compact Version: High efficient Irrigation-Controller with a very simple handling, “
the “Easy-Irrigation-System

Irrigation-Compact

The Easy-Irrigation-System;
Just connect wires, select Program and let it go!

Here Downloads
and Links

How does it work?

  • Using a light sensitive Sensor Irrigation starts automatic at night before dawn, the best time for Irrigation. This works also if there are frequent Power-failures.

  • You can select whether you want to have Continuous Irrigation or a Pulsed irrigation. The Pulsed irrigation reduces the water demand and works on the effect of trickle irrigation without the high costs for such a System

  • Automatic detection of no Water Flow and Alarm

  • You can connect any Humidity-Sensor. But you can use a very simple Self-Made Humidity-Sensor as well or you can get one together with the Device. The Sensor is based on Conductivity-Measuring with Temperature correction

  • Anti-Corrosion Protection for the Humidity-Sensor

  • Automatic Set-Point detection for the humidity-Sensor based on the min and max. Values

  • System works also if all Sensors are broken. Irrigation will be started all 24 hours in this case

  • Additionally Level-Sensors can be used in order to Protect the Pump from running dry

  • Manually Adjustment of the Irrigation-Cycle for example every second day etc

  • Manually Adjustment of the Irrigation-Time from Seconds to hours and many more Parameters can be adjusted

  • Manual Mode for the Pump

  • You can connect 12V, 24V DC or 220V AC Pumps or Valves with max. 2200 Watt/10 Ampere.

  • Very easy to handle. Just connect the Pump and Humidity-Sensor and it works.

  • The System can be extended by a Solar-Charger and / or a NiCd/NimH-Charger. So you can run and control your Solar-Water Pump with this Device

  • Open-Source-Project. You can even make your own Modifications in the Software and download it.

  • Serial Interface for to Scan Measurement-Values and evaluate on them on the PC

  • Very good price / performance-ratio

more Information and Downloads

download

Download of the Software

Download of the Bootloader for to load the Software

Download the Manual for more Information

The organic farmer, a very good and free online-magazine about sustainable farming

More Information about farming etc

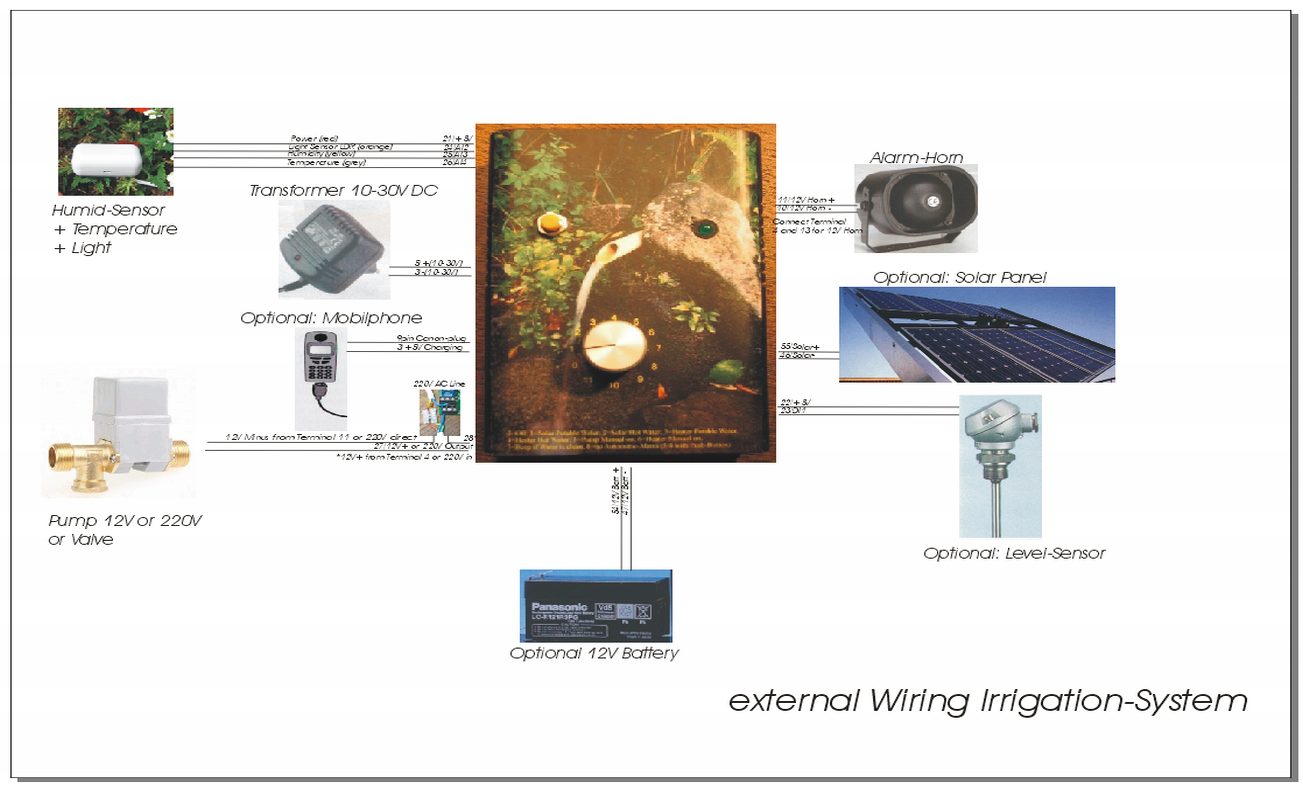

Overview external Wiring

Irrigation
